说明
• Provision 2E system leads the market in resolution, imaging quality, and throughput • Improved navigation for extreme accuracy; and sampling throughput 10 times faster than its predecessor • The PROVision 2E system is uniquely able to detect small, high aspect ratio, and under-layer defects, and measure CAD assisted massive CDU • By offering inspection and measurement in one tool, thePROVision 2E system saves production costs and improves yield • High resolution Hotspot and Area Inspection - pixels sizes 1nm-5nm • Over 1M data points per hour: fast motion and high current density • ADI layers inspection and CDU up to 150eV • Advanced imaging modes (HAR, Overlay, 3D): SE, BSE,Topography配置
Iprobe Range - 70pA-5nA Landing Energy - 150V - 15KV Image Resolution - 1.4nm @ ip=70pA 2.8nm @ ip=5nA Navigation Accuracy - ‡25nm based on AMAT BKM Pixel Size - 1nm - 5nm eTilt - 0° - 10° Topography Imaging - Yes (4Q detectors) BSE Imaging - Yes HAR - Yes Voltage Contrast - Yes TPT - 18K HS/hr based on AMAT BKM Detection Modes - D2Golden, D2D, C2C Measurements - 2D measurements CAD based Data Output - KLARF / CSV - CAD overlay over SEM image - High Quality OTF (including Image Enhancement)OEM 型号描述
未提供文件
无文件
类别
E-Beam
上次验证： 11 天前
物品主要详细信息
状况：
Used
运行状况:
未知
产品编号：
150106
晶圆尺寸：
未知
年份：
2017
Logistics Support
Available
Transaction Insured by Moov
Available
Refurbishment Services
Available

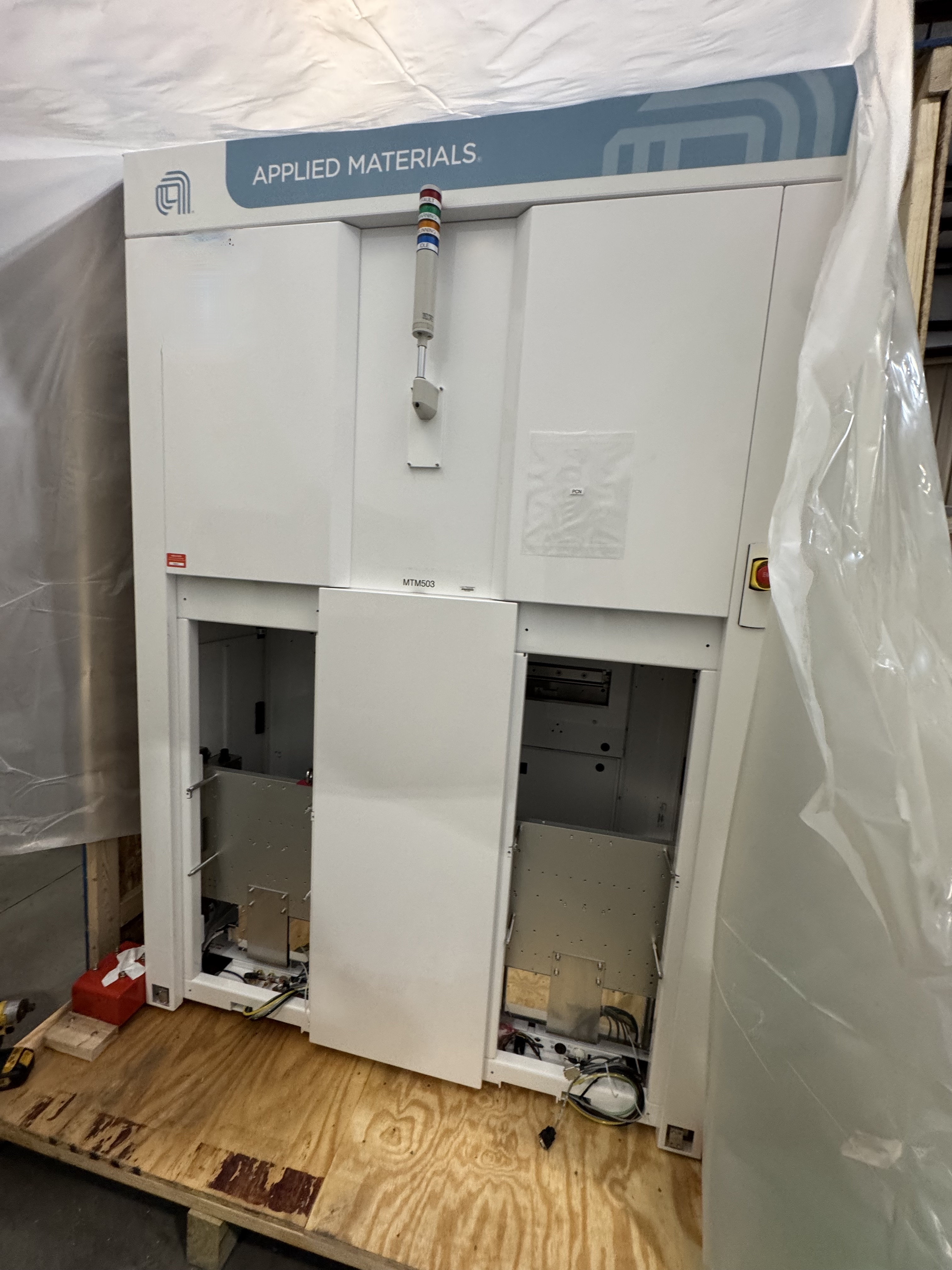

APPLIED MATERIALS (AMAT)
PROVision 2E
类别
E-Beam
上次验证： 11 天前
物品主要详细信息
状况：
Used
运行状况:
未知
产品编号：
150106
晶圆尺寸：
未知
年份：
2017
Logistics Support
Available
Transaction Insured by Moov
Available
Refurbishment Services
Available
说明
• Provision 2E system leads the market in resolution, imaging quality, and throughput • Improved navigation for extreme accuracy; and sampling throughput 10 times faster than its predecessor • The PROVision 2E system is uniquely able to detect small, high aspect ratio, and under-layer defects, and measure CAD assisted massive CDU • By offering inspection and measurement in one tool, thePROVision 2E system saves production costs and improves yield • High resolution Hotspot and Area Inspection - pixels sizes 1nm-5nm • Over 1M data points per hour: fast motion and high current density • ADI layers inspection and CDU up to 150eV • Advanced imaging modes (HAR, Overlay, 3D): SE, BSE,Topography配置
Iprobe Range - 70pA-5nA Landing Energy - 150V - 15KV Image Resolution - 1.4nm @ ip=70pA 2.8nm @ ip=5nA Navigation Accuracy - ‡25nm based on AMAT BKM Pixel Size - 1nm - 5nm eTilt - 0° - 10° Topography Imaging - Yes (4Q detectors) BSE Imaging - Yes HAR - Yes Voltage Contrast - Yes TPT - 18K HS/hr based on AMAT BKM Detection Modes - D2Golden, D2D, C2C Measurements - 2D measurements CAD based Data Output - KLARF / CSV - CAD overlay over SEM image - High Quality OTF (including Image Enhancement)OEM 型号描述
